INTRODUCTION

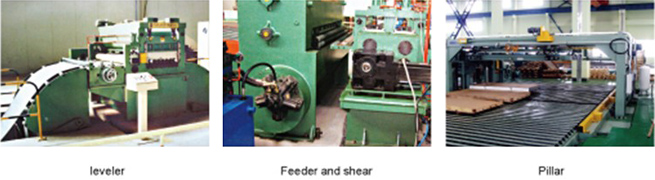

[Uncoiling Unit ] [Leveler ] [Feeder and Shear] [Stacking Unit]
Cut to Length Line
A cut to length line is generally used for jobs like uncoiling, straightening, measuring, cross-cutting to length and stacking of various materials such as cold or hot rolling carbon steel, tinplate, stainless steel, and other kinds of metal with coated surfaces.
Jinan Eagle CNC Machine Co., Ltd. is a professional cut to length line manufacturer, located in China. Our cut to length line comprises of a uncoiler, a leveler, meter encoder, feed roll, rotary shear, conveyor belt and stacker. Our cut to length line comes with stable performance, reliable quality and high working efficiency. As a result, it is widely used during the processing of home appliances, automobiles, hardware, steel products, and more.
Parameters of Cut to Length Line
Model/ Items |
Thickness (mm) |
Width (mm) |
Shearing Accuracy (mm) |
Max. Line Speed m/min |
Max. Cutting Speed (spm) |
Coil Weight (ton) |
ECL-2x1300 |
0.2-2 |
500-1300 |
0.3 |
60 |
50 |
7/15 |
ECL-2x1600 |
0.2-2 |
500-1600 |
0.3 |
60 |
50 |
7/15 |
ECL-2x1830 |
0.2-2 |
900-1800 |
0.3 |
50 |
40 |
20 |
ECL-3x1600 |
0.5-3 |
500-1600 |
0.3 |
50 |
40 |
15 |
ECL-3x1830 |
0.5-3 |
900-1800 |
0.3 |
50 |
40 |
20 |
ECL-3x2000 |
0.5-3 |
900-2000 |
0.3 |
45 |
40 |
30 |
ECL-6x1600 |
1-6 |
900-1600 |
1 |
25 |
|
20 |
ECL-6x2000 |
1-6 |
900-2000 |
1 |
25 |
30 |
|
ECL-8x2000 |
2-8 |
900-2000 |
1 |
20 |
30 |
|
ECL-12x2000 |
3-12 |
900-2000 |
1.5 |
20 |
30 |
|
ECL-16x2000 |
4-16 |
900-2000 |
2 |
15 |
40 |
|
ECL-20x2000 |
5-20 |
900-2000 |
2 |
15 |
40 |
|
ECL-25x2000 |
8-25 |
900-2000 |
2 |
15 |
40 |
